LGX Casstte 4 Channel DWDM OADM Multiplexer Module

Name: LGX Casstte 4 Channel DWDM OADM Multiplexer Module
Brand: GEZHI or OEM
Price: 1 USD

Buy cheap LGX Casstte 4 Channel DWDM OADM Multiplexer Module product

Brand Name : GEZHI or OEM

Model Number : 4CH-OADMDWDM

Certification : CE RoHS ,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Product Name : DWDM OADM

Wavelength : C33 to C36

Channel Passband : 0.8nm (100Ghz)

Line Type : West and East

Connector : LC/PC

Application : Optical Add & Drop Channel

Contact Now

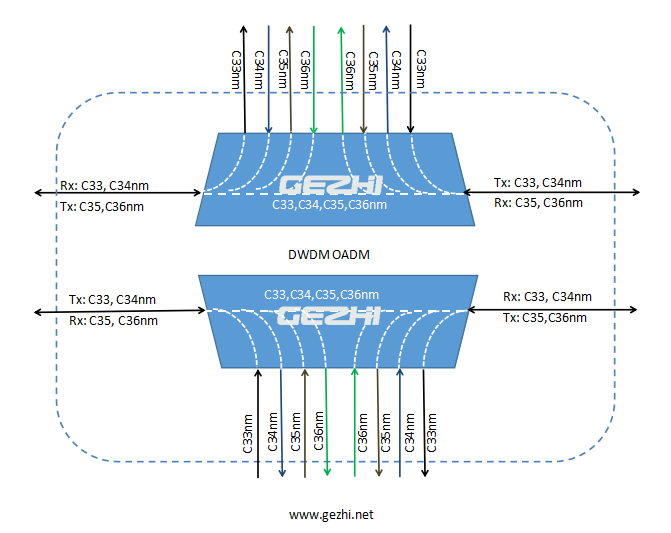

4 Channel West and East DWDM OADM Multiplexer Module in LGX casstte

GEZHI’ 4 Channel West and East DWDM OADM Multiplexer Module in LGX casstte is a low insertion loss, high density passive optical module which based on the thin film coating technology with C33, C34, C35, C36 wavelength. Its package a two 4CH West and East DWDM OADM module in a plug-in LGX Cassette with LC/UPC adaptor. This 4 Channel West and East DWDM OADM Multiplexer Module are used in WDM systems for multiplexing and demultiplexing and routing fiber optic signals, selectively adding and dropping individual or sets of wavelength channels from a DWDM stream. The DWDM OADM modules are available in dual-sided (East and West) configurations supporting up to four wavelengths on two fiber.

Features

Flexible OADM networking
Low Insertion Loss

4 channel East & West

Dual Fiber working
No electric power required

Applications

Wavlength Routing

Cellular Application

CATV Fiber Optic Links

Long Haul Networks

Metro Networks

Fiber Optical amplifier

Line Monitoring

Channel Add/Drop

Dense WDM Systems

Specification

Parameter		Unit	4CH DWDM OADM
			Add	Drop
Channel Wavelength		nm	C33, C34, C35, C36
Center wavelength Accuracy		nm	ITU-T Grid @DWDM
Channel Passband		nm	0.8 (100Ghz)
Insertion Loss		dB	<1.8	<1.8
Channel Ripple		dB	0.5
Isolation	Adjacent	dB	>30
	Non-adjacent	dB	>40
Inertion Loss Temperature Sensitivity		dB/℃	<0.005
Wavelength Temperature Shifting		nm/ ℃	<0.002
Polarization Dependent Loss		dB	<0.15
Polarization Mode Dispersion		dB	<0.1
Directivity		dB	>50
Return Loss		dB	>45
Maximum Power Handling		mW	300
Opterating Temperature		℃	-20~+70
Storage Temperature		℃	-40~85
Package dimension		mm	LGX cassette

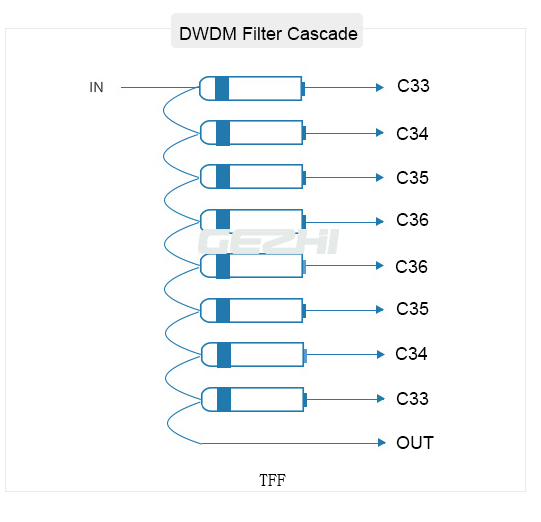

1x8 Channel Fiber Optical Passive Dense Wavelength Division Multiplexer filter cascading

LGX Casstte 4 Channel DWDM OADM Multiplexer Module

1x8 Channel Fiber Optical Passive Dense Wavelength Division Multiplexer

Dual Fiber DWDM

LGX Casstte 4 Channel DWDM OADM Multiplexer Module
