1x2 OADM Multiplexer 3 port single Channel CWDM device
The 1x2 OADM Multiplexer device is thin film filter technology and metal bonding micro optics packaging for improved performance, such as lower insertion loss and wide channel bandwidth, higher thermal stability, flexible channel configuration with a competitive cost structure.
GEZHI's 1x2 OADM Multiplexer 3 port single Channel CWDM device is used to add or drop a particular wavelength and is ideal for telecommunicationsand networking. Additionally, this 1x2 Add/Drop device can be used in high-power applications in CWDM systems.
Features
Low Insertion Loss
Highly Stable & Reliable
Epoxy-Free Optical Path
High Channel Isolation
Low Profile Packaging
Applications
Fiber Amplifier System
Add/Drop Channels
WDM Systems
CATV Fiberoptic Links
Specification
| Parameter | Specification |
| Channel Wavelength (nm) | 1260 ~ 1620 |
| Center wavelength Accuracy (nm) | ±0.5 |
| Channel Spacing (nm) | 20 |
| Channel Passband (@-0.5dB bandwidth (nm) | >13 |
| Pass Channel Insertion Loss (dB) | ≤0.6 |
| Reflection Channel Insertion Loss (dB) | ≤0.4 |
| Channel Ripple (dB) | <0.3 |
| Isolation (dB) | Adjacent | >30 |
| Non-adjacent | >40 |
| Polarization Dependent Loss (dB) | <0.1 |
| Polarization Mode Dispersion | <0.1 |
| Directivity (dB) | >50 |
| Return Loss (dB) | >45 |
| Maximum Power Handling (mW) | 300 |
| Opterating Temperature (℃) | -20~+75 |
| Storage Temperature (℃) | -40~85 |
| Package dimension (mm) | Φ5.5x34 (Bare fiber) Φ5.5x38 (900um Loose tube) |
Note: 1. Customization is available.
2. Specified with connector
Drawing

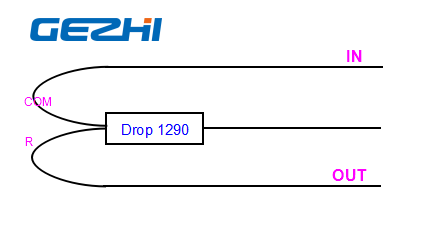

It drops or adds one wavelength-specific channel from the network fiber in single-seded transmission.

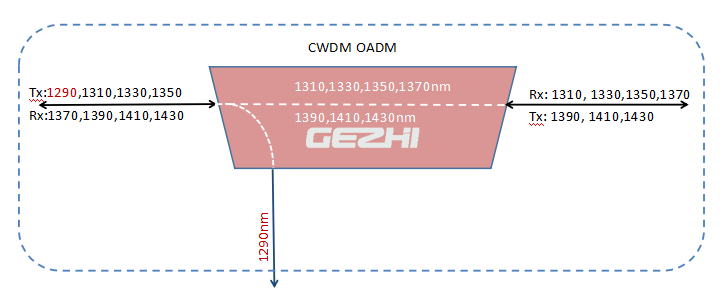

1x2 Single Channel CWDM add drop multiplexer for EAST or WEST for bi-directional data transmission over single fibers.

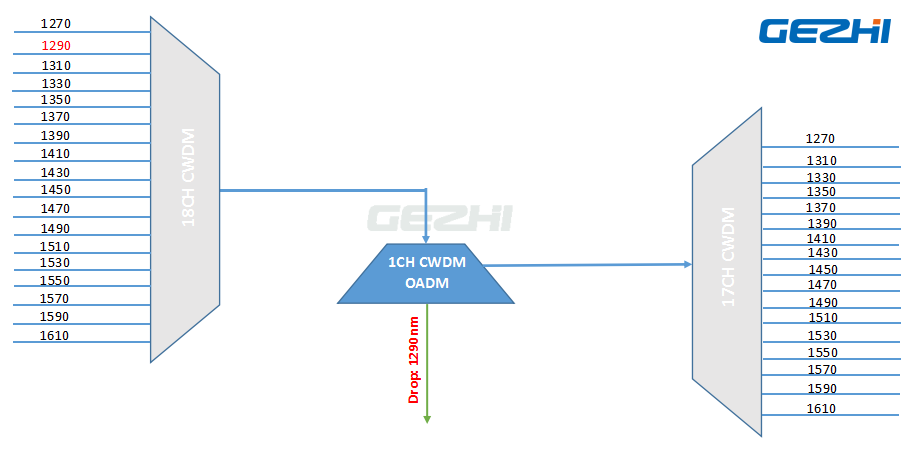

1 Channel OADM filter cascading
1x2 OADM Multiplexer 3 port single Channel CWDM device
Product Tags:
|
|

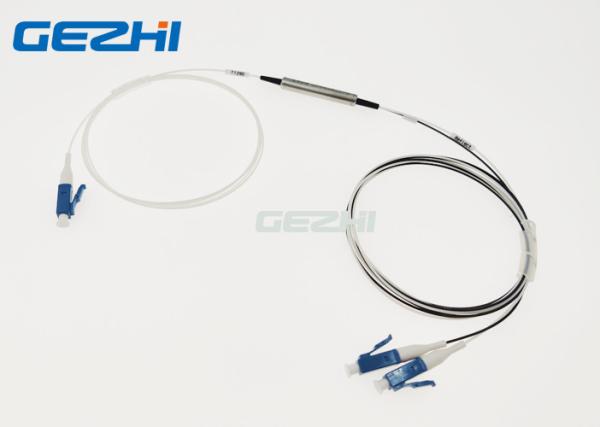

3 Port Single Channel 1290nm 1x2 OADM CWDM Device Images
|
